磁共振测井传感器磁体结构的拓扑优化方法

宋彦佐, 于会媛, 陈敬智, 沈玥, 徐显能, 徐征

Topology Optimization Method of Magnetic Resonance Logging Sensor Magnet Structure

SONG Yanzuo, YU Huiyuan, CHEN Jingzhi, SHEN Yue, XU Xianneng, XU Zheng

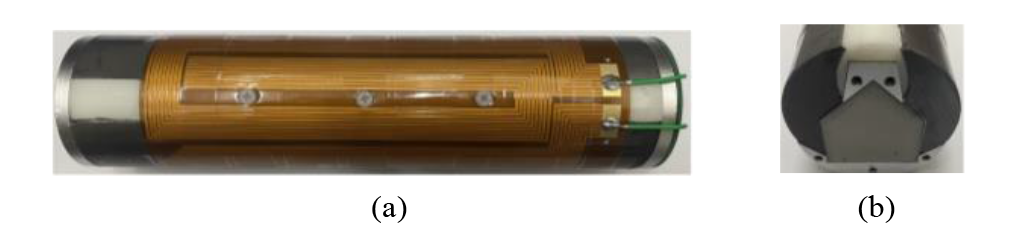

图6 单边磁共振测井传感器样机. (a)传感器样机俯视图；(b)传感器样机侧视图

Fig. 6 Single side NMR logging sensor prototype. (a) Top view of the sensor prototype; (b) side view of the sensor prototype
