磁共振测井传感器磁体结构的拓扑优化方法

宋彦佐, 于会媛, 陈敬智, 沈玥, 徐显能, 徐征

Topology Optimization Method of Magnetic Resonance Logging Sensor Magnet Structure

SONG Yanzuo, YU Huiyuan, CHEN Jingzhi, SHEN Yue, XU Xianneng, XU Zheng

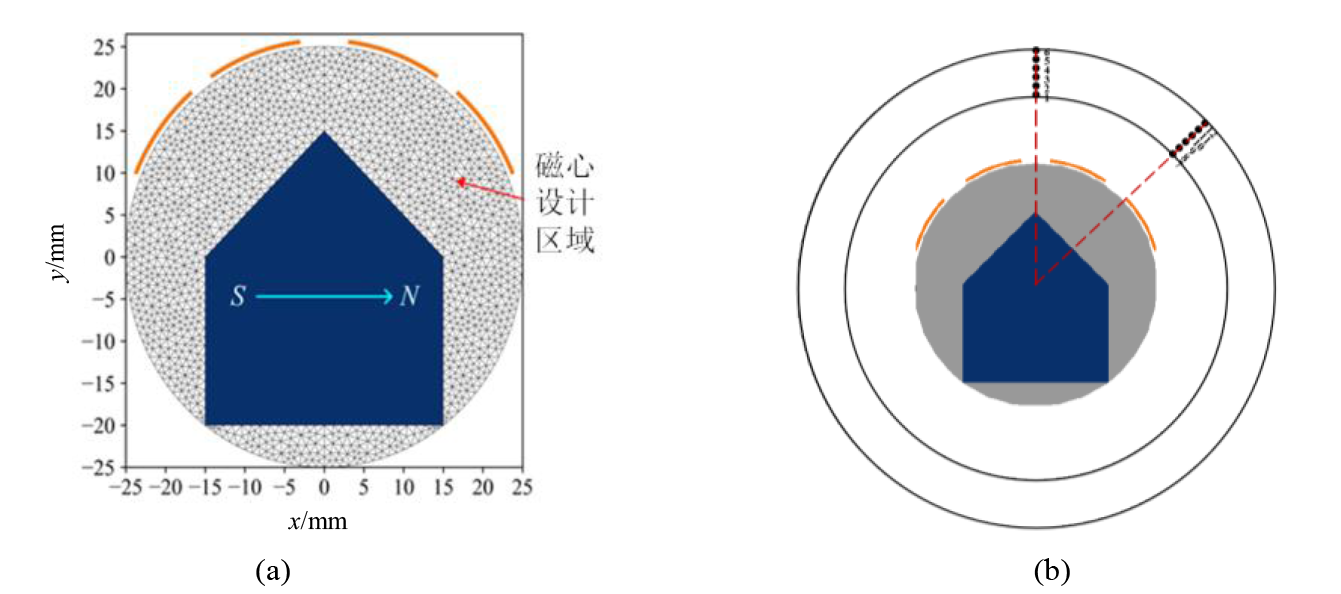

图3 磁心设计区域有限元网格剖分与目标点选取.(a)磁心设计区域有限元网格剖分；(b)目标点选取

Fig. 3 Magnetic core design area finite element mesh generation and target point selection. (a) Magnetic core design area finite element mesh generation, (b) Target point selection
