一种用于低场磁共振波谱仪的圆极化线圈设计

汤世豪, 杨谨毓, 徐雅洁, 王亚, 彭博文, 高宇昊, 杨晓冬

A Design of Circularly Polarized Coil for Low-field Nuclear Magnetic Resonance Spectrometers

TANG Shihao, YANG Jinyu, XU Yajie, WANG Ya, PENG Bowen, GAO Yuhao, YANG Xiaodong

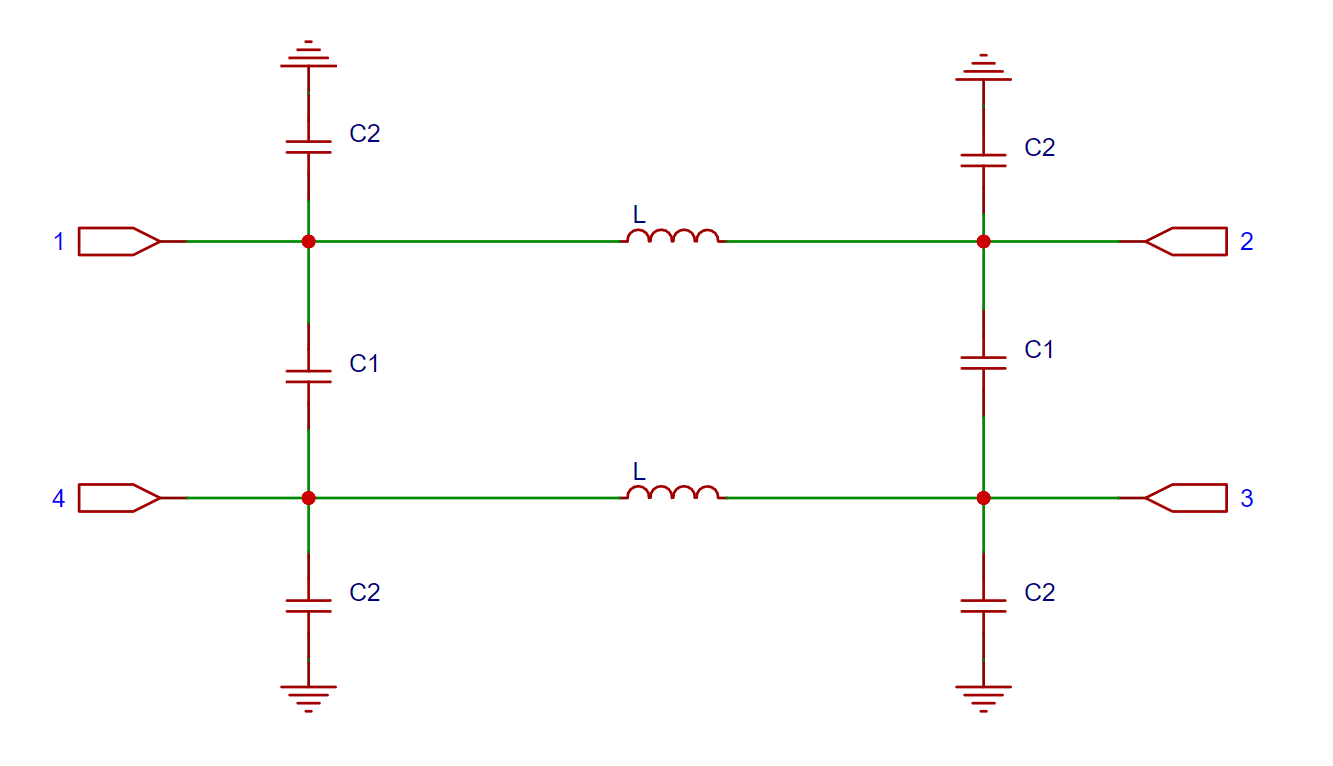

图10 等效于λ/8的集总元件电路Hybrid电桥

Fig. 10 Lumped element circuit equivalent to the λ/8 quad hybrid
