一种用于低场磁共振波谱仪的圆极化线圈设计
A Design of Circularly Polarized Coil for Low-field Nuclear Magnetic Resonance Spectrometers
一种用于低场磁共振波谱仪的圆极化线圈设计 |
| 汤世豪, 杨谨毓, 徐雅洁, 王亚, 彭博文, 高宇昊, 杨晓冬 |
|
A Design of Circularly Polarized Coil for Low-field Nuclear Magnetic Resonance Spectrometers |
| TANG Shihao, YANG Jinyu, XU Yajie, WANG Ya, PENG Bowen, GAO Yuhao, YANG Xiaodong |

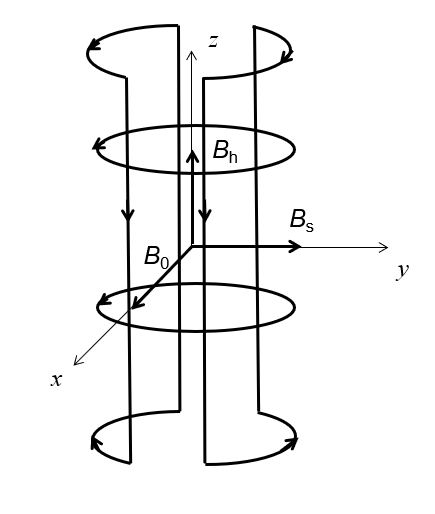

| 图3 Halbach磁体产生的B0场（沿x轴方向），鞍形线圈产生的Bs射频场（沿y轴方向），亥姆霍兹线圈产生的Bh场（沿z轴方向）. 其中线圈上的箭头代表电流方向 |
| Fig. 3 The B0 field generated by the Halbach magnet (along the x-axis direction), the Bs radiofrequency field generated by the saddle coil (along the y-axis direction), and the Bh field generated by the Helmholtz coil (along the z-axis direction). The arrows on the coils indicate the current direction |
|
|
