一种用于低场磁共振波谱仪的圆极化线圈设计
A Design of Circularly Polarized Coil for Low-field Nuclear Magnetic Resonance Spectrometers
一种用于低场磁共振波谱仪的圆极化线圈设计 |
| 汤世豪, 杨谨毓, 徐雅洁, 王亚, 彭博文, 高宇昊, 杨晓冬 |
|
A Design of Circularly Polarized Coil for Low-field Nuclear Magnetic Resonance Spectrometers |
| TANG Shihao, YANG Jinyu, XU Yajie, WANG Ya, PENG Bowen, GAO Yuhao, YANG Xiaodong |

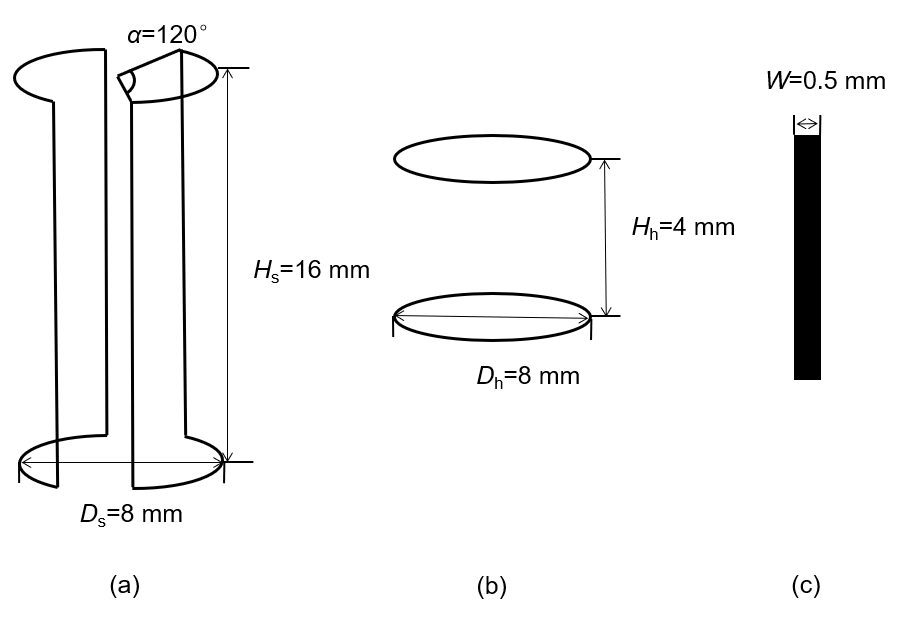

| 图4 (a)鞍形线圈尺寸示意图，线圈高度Hs为16 mm，线圈直径Ds为8 mm，线圈角度为120˚；(b)亥姆霍兹线圈尺寸示意图，线圈高度Hh为4 mm，线圈半径Dh为8 mm；(c)铜带宽度示意图，宽度W为0.5 mm |
| Fig. 4 (a) Schematic diagram of the saddle coil dimensions, with a coil height Hs of 16 mm, a coil diameter Ds of 8 mm, and a coil angle of 120˚; (b) Schematic diagram of the Helmholtz coil dimensions, with a coil height Hh of 4 mm and a coil radius Dh of 8 mm; (c) Schematic diagram of the copper strip width, with a width W of 0.5 mm |
|
|
