一种用于低场磁共振波谱仪的圆极化线圈设计

汤世豪, 杨谨毓, 徐雅洁, 王亚, 彭博文, 高宇昊, 杨晓冬

A Design of Circularly Polarized Coil for Low-field Nuclear Magnetic Resonance Spectrometers

TANG Shihao, YANG Jinyu, XU Yajie, WANG Ya, PENG Bowen, GAO Yuhao, YANG Xiaodong

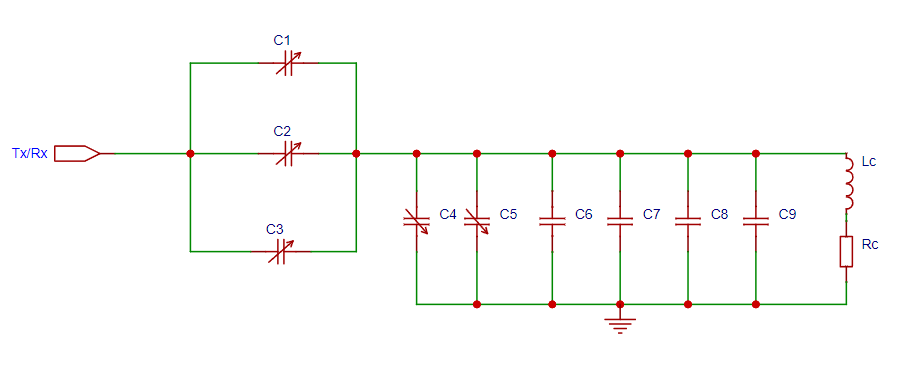

图6 L型匹配网络，其中Lc与Rc是线圈等效电感与等效电阻，C1~C3为调谐电容，C4~C9为匹配电容

Fig. 6 L-type matching network, where Lc and Rc represent the equivalent inductance and equivalent resistance of the coil, respectively, C1~C3 is the tuning capacitor, and C4~C9 is the matching capacitor
