低场固体核磁共振魔角旋转探头关键部件的研制
Design and Development of Key Components for a Low-field Solid-state NMR Magic Angle Spinning (MAS) Probe
低场固体核磁共振魔角旋转探头关键部件的研制 |
| 吴肇博, 王佳鑫, 刘万震, 程鑫, 魏巍, 黄臻, 陈方, 张志, 刘朝阳 |
|
Design and Development of Key Components for a Low-field Solid-state NMR Magic Angle Spinning (MAS) Probe |
| WU Zhaobo, WANG Jiaxin, LIU Wanzhen, CHENG Xin, WEI Wei, HUANG Zhen, CHEN Fang, ZHANG Zhi, LIU Chaoyang |

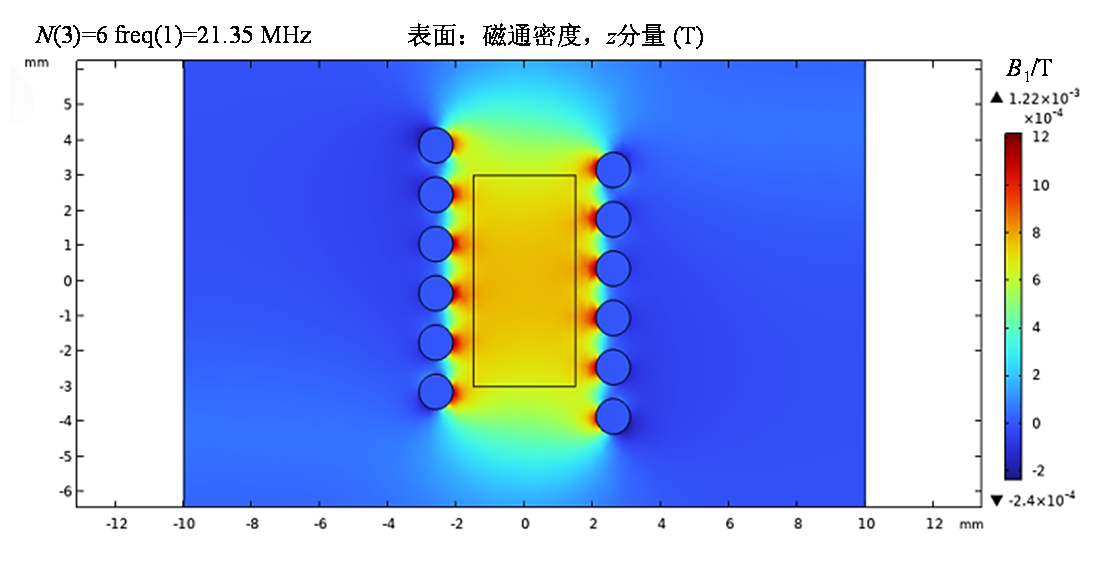

| 图6 螺线管线圈B1场分布仿真结果. 其中：磁通密度指射频场磁感应强度，颜色由蓝到红表示磁感应强度由弱到强 |
| Fig. 6 Simulation results of the B1 field distribution of the solenoid coil, where magnetic flux density refers to the magnetic induction intensity of the radio frequency field, and the color from blue to red indicates the magnetic induction intensity from weak to strong |
|
|
