低场固体核磁共振魔角旋转探头关键部件的研制

吴肇博, 王佳鑫, 刘万震, 程鑫, 魏巍, 黄臻, 陈方, 张志, 刘朝阳

Design and Development of Key Components for a Low-field Solid-state NMR Magic Angle Spinning (MAS) Probe

WU Zhaobo, WANG Jiaxin, LIU Wanzhen, CHENG Xin, WEI Wei, HUANG Zhen, CHEN Fang, ZHANG Zhi, LIU Chaoyang

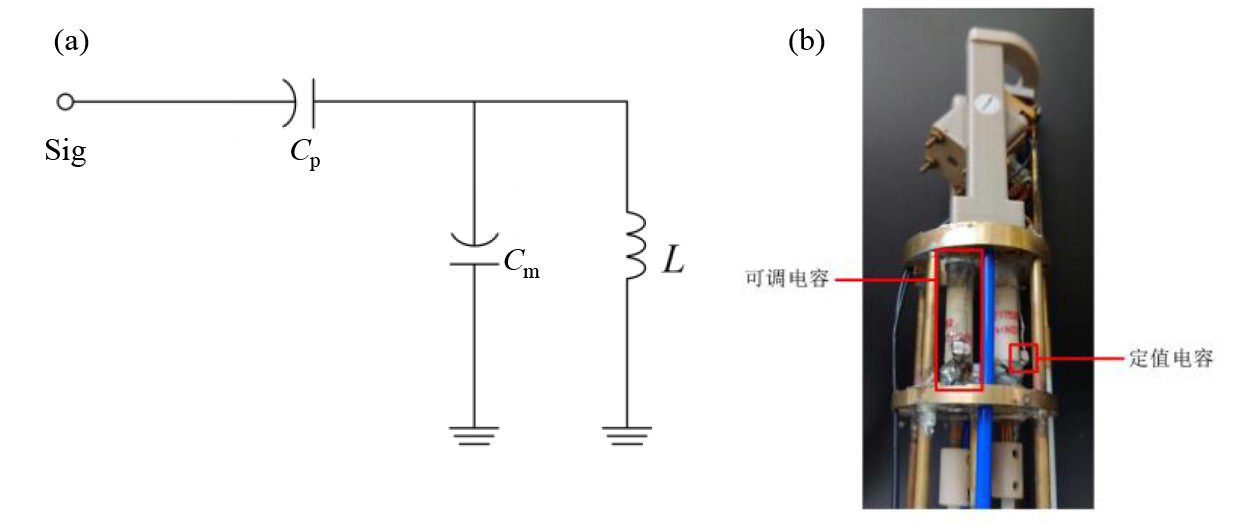

图9 射频电路匹配网络与实物. (a) LC并联谐振网络；(b)射频电路实物图

Fig. 9 Matching network of the radio frequency circuit and the physical picture. (a) LC parallel resonant network; (b) Photograph of the RF circuit
