大口径高均匀度核磁共振Halbach磁体研究

刘万震, 陈方, 陈黎, 王佳鑫, 程鑫, 易鹏, 张志, 刘朝阳

Research on Large-bore and High Homogeneity Halbach Magnet for Nuclear Magnetic Resonance

LIU Wanzhen, CHEN Fang, CHEN Li, WANG Jiaxin, CHENG Xin, YI Peng, ZHANG Zhi, LIU Chaoyang

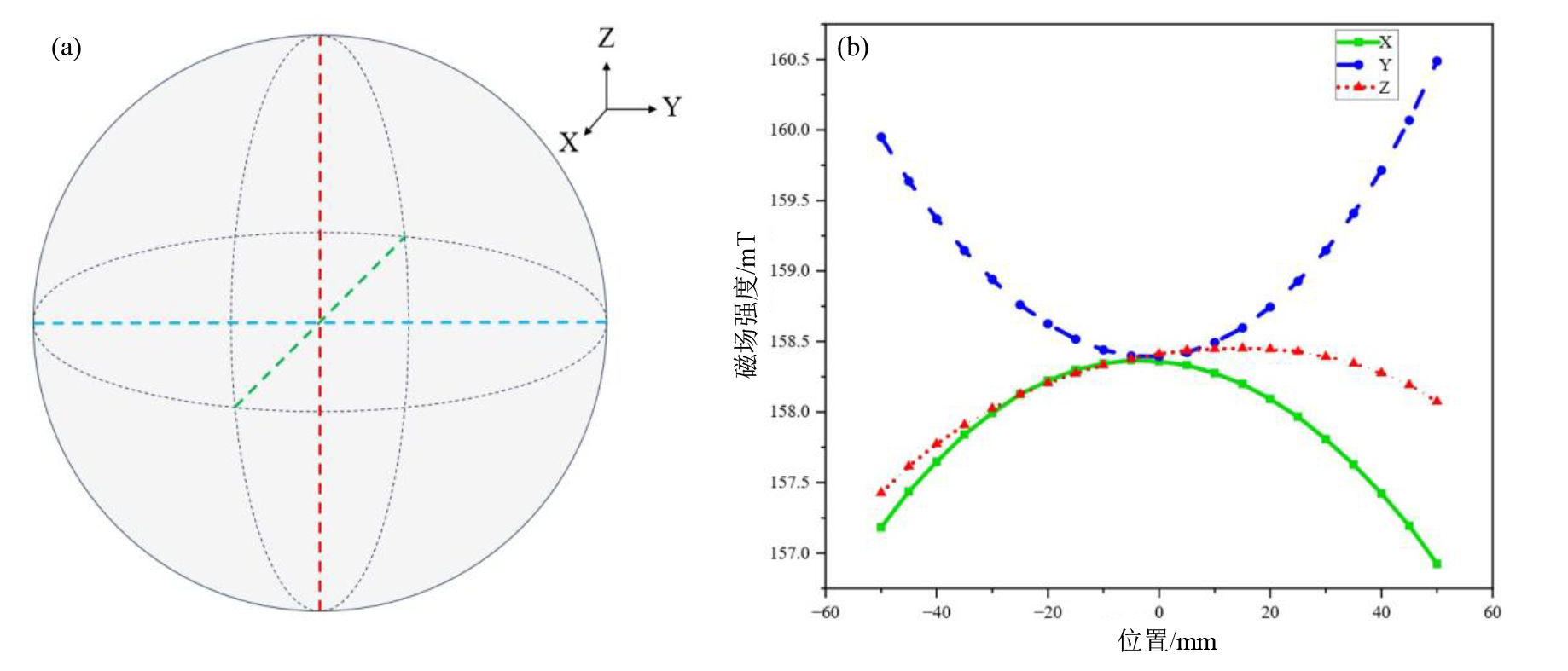

图8 (a)目标区域及X、Y、Z轴向100 mm磁场分布测量线；(b) X、Y、Z轴向100 mm范围内初始磁场分布

Fig. 8 (a) ROI and the 100 mm field mapping lines along the X, Y, and Z axes; (b) Initial magnetic field profiles within a 100 mm range along the X, Y, and Z axes
