磁共振成像技术在儿童运动干预研究中的应用

doi:10.11938/cjmr20243129

摘要/Abstract

摘要：

运动干预作为辅助儿童疾病康复和促进儿童大脑结构功能改善的方法备受关注．磁共振成像技术提供了多种分析方法研究儿童大脑变化，在儿童运动干预研究中得到广泛应用．本文通过分析现有的儿童运动干预研究成果，进一步深入探讨运动干预对儿童大脑的影响、研究中影像技术和干预方法的选择，分析了部分实验差异不明显的原因，并提出了解决建议．本综述总结了磁共振成像技术在儿童运动干预研究中的应用，分析了其重要作用及潜在价值，为后续相关研究提供了有益的参考．

关键词: 磁共振成像, 运动干预, 儿童, 脑

Abstract:

Exercise intervention has become increasingly recognized as an effective method in aiding the rehabilitation of pediatric diseases and promoting structural and functional improvements of the pediatric brain. Magnetic resonance imaging (MRI) technology offers a range of analytical methods to study brain changes in children and is widely applied in pediatric exercise intervention research. In this paper, we summarize the findings and methodologies of the existing pediatric exercise intervention research and discuss the impact of exercise interventions on the pediatric brain. Additionally, we analyze the potential causes for the lack of significant MRI differences in some experiments and propose corresponding solutions. This review highlights the application of MRI technology in pediatric exercise intervention research, underscores its importance and potential value, and provides a reference for future studies in this field.

Key words: magnetic resonance imaging (MRI), exercise intervention, children, brain

中图分类号:

R-331

陈群, 杨子剑, 程心怡, 郏思奕, 杜小霞, 王梦星. 磁共振成像技术在儿童运动干预研究中的应用[J]. 波谱学杂志, 2025, 42(2): 195-204.

CHEN Qun, YANG Zijian, CHENG Xinyi, JIA Siyi, DU Xiaoxia, WANG Mengxing. Application of Magnetic Resonance Imaging Technology in Pediatric Exercise Intervention Research[J]. Chinese Journal of Magnetic Resonance, 2025, 42(2): 195-204.

图/表 4

表1

不同检查方法在儿童运动干预实验中的结果

文献	检查技术	干预方法	干预时间	实验对象	年龄/岁	干预结果
[5]	sMRI	中等强度组合方案	11周	聋哑儿童	11.01±0.64	右侧小脑前部灰质体积减小
[6]	sMRI	团体有氧运动	12周	脑瘤儿童	11.19±2.98	皮质厚度和右侧运动和躯体感觉皮层下白质体积增加
[7]	sMRI	校内外体育活动	4年	健康儿童	10.1±2.1	海马体体积无明显变化
[10]	DTI	有氧运动	8个月	超重儿童	9.9±0.6	额颞白质FA增加，RD减少
[11]	DTI	下肢选择性动作控制	1个月	早产脑瘫儿童	11.5±2.8	运动相关的白质区域RD和MD显著降低
[12]	DTI	小篮球运动	12周	孤独症儿童	5.13±0.61	白质完整性得到改善
[13]	DTI	调查体育活动水平*	/	健康儿童	9.71±0.28	皮质脊髓束、上纵束和下纵束等表现出更大的FA
[14]	DTI	测量有氧运动能力*	/	健康儿童	9.9±0.6	胼胝体、放射冠、上级纵束表现出更大的FA
[15]	DTI	测量有氧运动能力*	/	健康儿童	14.3±0.9	胼胝体、双侧上放射冠为主的白质纤维束表现出更大的FA
[17]	静息态fMRI	小篮球运动	12周	孤独症儿童	6.40±2.07	感觉运动网络功能连接减少，左颞下回和左尾状核为中心的两个子网络形态连通性降低
[18]	静息态fMRI	小篮球运动	12周	孤独症儿童	5.07±0.59	改善执行控制网络功能连接
[19]	静息态fMRI	小篮球运动	12周	孤独症儿童	5.13±0.64	重塑脑功能网络特征
[20]	静息态fMRI	小篮球运动	12周	孤独症儿童	5.06±0.63	执行功能相关脑区功能局部一致性改变
[21]	静息态fMRI	小篮球运动	12周	孤独症儿童	5.00	改善了默认模式网络的功能连接
[22]	静息态fMRI	中等强度组合方案	11周	聋哑儿童	11.01±0.64	改善执行控制网络功能连接
[23]	静息态fMRI	中等强度有氧运动	短时	健康儿童	10.00	增加了静息状态下脑功能局部一致性
[24]	静息态fMRI	心血管健康和大运动技能*	/	健康儿童	9.13±0.62	与更好的神经认知功能相关
[25]	任务态fMRI	中等强度组合方案	14周	聋哑儿童	10.14±1.03	改善了工作记忆的脑激活模式
[26]	任务态fMRI	中等强度有氧急性运动	短时	健康儿童	10.00	改善多个脑区工作记忆脑激活模式
[27]	任务态fMRI	有氧运动	14周	健康儿童	9.22±0.72	大脑激活无显著影响
[28]	sMRI+ 静息态fMRI	中等强度组合方案	11周	聋哑儿童	11.26±1.24	灰质体积增加，执行控制相关脑区功能连接重组
[29]	sMRI+ 任务态fMRI	中等强度组合方案	11周	聋哑儿童	11.26±1.24	增强聋哑儿童脑结构和脑功能协变网络的小世界属性
[30]	静息态MRI+ 任务态fMRI	课外运动	11周	聋哑儿童	10.136±1.221	左侧海马与其他脑区功能连接增强
[31]	静息态MRI+ 任务态fMRI	有手部抓握训练经历*	/	健康儿童	12.25±1.87	脑区激活程度更强，激活区域更广
[32]	DTI+ 静息态fMRI	有氧运动和认知运动	14周	健康儿童	9.20±0.68	未发现FA、MD和认知功能的改变
[33]	sMRI+ 静息态fMRI	运动课程	10周	超重儿童	10.0±1.1	脑结构以及海马体和前额皮质之间功能连接无显著改变
[37]	MRS	有氧运动	8周	超重儿童	12.24±1.08	位于额叶的感兴趣区脑代谢提高
[38]	MRS	有氧运动	/	超重儿童	12.24±1.08	影响外围器官与中枢神经系统的双向神经信息交流模式，逆转额叶代谢下降

表1

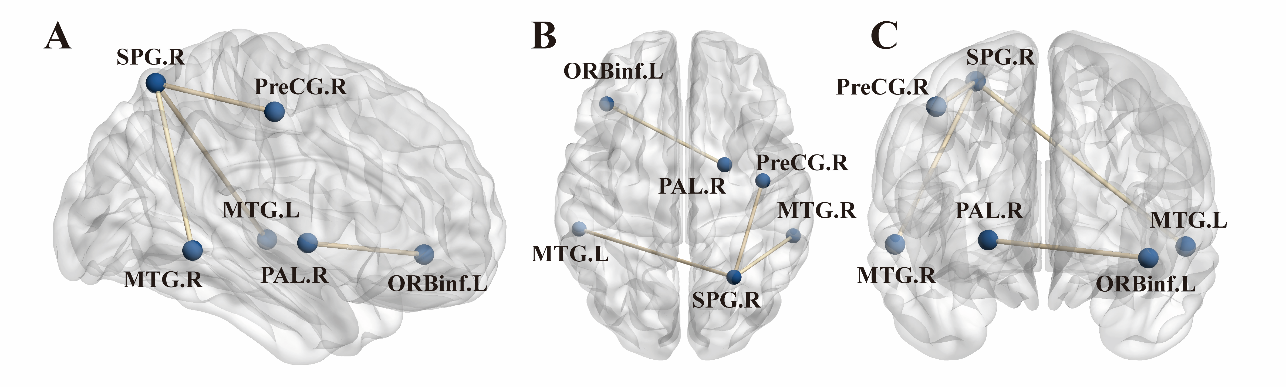

图1

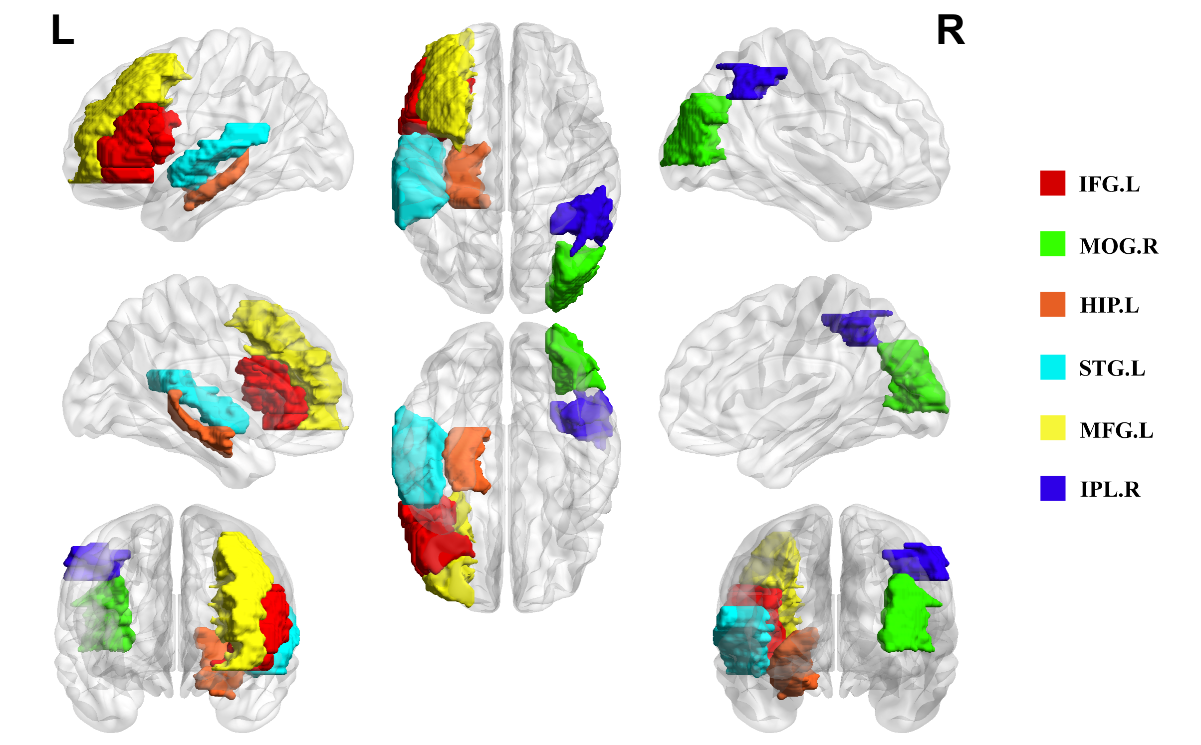

图2

图3

参考文献 41

[1]	KONG D H, ZHANG G. Research progress on the impact of exercise intervention on brain executive functions in children with attention deficit hyperactivity disorder: a neuroimaging perspective[J]. Chin J Child Health Care, 2023, 31(8): 879-883.
	孔德华, 张功. 运动干预对注意缺陷多动障碍儿童脑执行功能影响的神经影像学研究进展[J]. 中国儿童保健杂志, 2023, 31(8): 879-883. doi: 10.11852/zgetbjzz2022-1475
[2]	IRIE K, MATSUMOTO A, ZHAO S, et al. Neural basis and motor imagery intervention methodology based on neuroimaging studies in children with developmental coordination disorders: a review[J]. Front Hum Neurosci, 2021, 15: 620599.
[3]	DONNELLY J E, HILLMAN C H, CASTELLI D, et al. Physical activity, fitness, cognitive function, and academic achievement in children: a systematic review[J]. Med Sci Sports Exerc, 2016, 48(6): 1197-1222.
[4]	LOGAN N E, WARD-RITACCO C L. The developing brain: considering the multifactorial effects of obesity, physical activity & mental wellbeing in childhood and adolescence[J]. Children (Basel), 2022, 9(12): 1802.
[5]	CHEN A G, XIONG X, ZHU L N, et al. Effects of exercise intervention on executive functions and gray matter volume in deaf children[J]. China Sport Science, 2018, 38(1): 42-48.
	陈爱国, 熊轩, 朱丽娜, 等. 运动干预对聋哑儿童执行功能及脑灰质体积的影响[J]. 体育科学, 2018, 38(1): 42-48.
[6]	SZULC-LERCH K U, TIMMONS B W, BOUFFET E, et al. Repairing the brain with physical exercise: cortical thickness and brain volume increases in long-term pediatric brain tumor survivors in response to a structured exercise intervention[J]. Neuroimage Clin, 2018, 18: 972-985.
[7]	BUNKETORP K L, MALMGREN H, OLSSON E, et al. Effects of a curricular physical activity intervention on children's school performance, wellness, and brain development[J]. J Sch Health, 2015, 85(10): 704-713. doi: 10.1111/josh.12303 pmid: 26331753
[8]	MILLS K L, GODDINGS A L, HERTING M M, et al. Structural brain development between childhood and adulthood: Convergence across four longitudinal samples[J]. NeuroImage, 2016, 141: 273-281. doi: S1053-8119(16)30351-2 pmid: 27453157
[9]	YANG L M, WANG Y J. Research progress on denoising algorithms for diffusion tensor imaging[J]. Chinese J Magn Reson, 2024, 41(3): 341-361.
	杨黎明, 王远军. 扩散张量图像去噪算法研究进展[J]. 波谱学杂志, 2024, 41(3): 341-361. doi: 10.11938/cjmr20243087
[10]	SCHAEFFER D J, KRAFFT C E, SCHWARZ N F, et al. An 8-month exercise intervention alters frontotemporal white matter integrity in overweight children[J]. Psychophysiology, 2014, 51(8): 728-733. doi: 10.1111/psyp.12227 pmid: 24797659
[11]	VUONG A, JOSHI S H, STAUDT L A, et al. Improved myelination following camp leg power, a selective motor control intervention for children with spastic bilateral cerebral palsy: a diffusion tensor MRI study[J]. AJNR Am J Neuroradiol, 2023, 44(6): 700-706.
[12]	蔡可龙. 小篮球运动对学龄前孤独症谱系障碍儿童社交障碍及脑白质完整性的影响[D]. 扬州: 扬州大学, 2021.
[13]	RODRIGUEZ-AYLLON M, DERKS I P M, VAN DEN DRIES M A, et al. Associations of physical activity and screen time with white matter microstructure in children from the general population[J]. NeuroImage, 2020, 205: 116258.
[14]	CHADDOCK-HEYMAN L, ERICKSON K I, HOLTROP J L, et al. Aerobic fitness is associated with greater white matter integrity in children[J]. Front Hum Neurosci, 2014, 8: 584.
[15]	RUOTSALAINEN I, GORBACH T, PERKOLA J, et al. Physical activity, aerobic fitness, and brain white matter: their role for executive functions in adolescence[J]. Dev Cogn Neurosci, 2020, 42: 100765.
[16]	DU X X, QIN Z X. The review and the future of functional magnetic resonance imaging[J]. Chin J Magn Reson Imaging, 2019, 10(10): 721-726.
	杜小霞, 秦朝霞. 磁共振功能成像回顾与展望[J]. 磁共振成像, 2019, 10(10): 721-726.
[17]	ZHOU D, LIU Z, GONG G, et al. Decreased functional and structural connectivity is associated with core symptom improvement in children with autism spectrum disorder after mini-basketball training program[J]. J Autism Dev Disord, 2023, 54: 4515-4528. doi: 10.1007/s10803-023-06160-x pmid: 37882897
[18]	刘智妹. 小篮球运动对学龄前孤独症谱系障碍儿童重复刻板行为及执行控制网络功能连接的影响[D]. 扬州: 扬州大学, 2020.
[19]	杨泗鑫. 小篮球运动改善孤独症儿童社交障碍的脑功能网络特征研究[D]. 扬州: 扬州大学, 2023.
[20]	王金贵. 小篮球运动对学龄前孤独症谱系障碍儿童执行功能及静息态脑功能局部一致性的影响[D]. 扬州: 扬州大学, 2020.
[21]	余韩. 学龄前孤独症谱系障碍儿童社交障碍及其运动干预下默认模式网络重塑的功能磁共振研究[D]. 扬州: 扬州大学, 2022.
[22]	朱丽娜. 有氧运动干预对聋哑儿童执行功能及其脑网络功能连接的影响[D]. 扬州: 扬州大学, 2017.
[23]	CHEN A G, ZHU L N, WANG X, et al. Effect of acute moderate exercise on regional homogeneity of children: a rs-fMRI study[J]. China Sport Science, 2015, 35(8): 24-29.
	陈爱国, 朱丽娜, 王鑫, 等. 短时中等强度有氧运动对儿童脑的可塑性影响:来自脑功能局部一致性的证据[J]. 体育科学, 2015, 35(8): 24-29.
[24]	MEIJER A, KONIGS M, POUWELS P J W, et al. Resting state networks mediate the association between both cardiovascular fitness and gross motor skills with neurocognitive functioning[J]. Child Dev, 2022, 93(4): e412-e426. doi: 10.1111/cdev.13759 pmid: 35426121
[25]	金柳. “跑步+武术操+花样跳绳” 运动对聋哑儿童工作记忆影响的fMRI研究[D]. 扬州: 扬州大学, 2016.
[26]	CHEN A G, ZHU L N, YAN J, et al. Neural basis of working memory enhancement after acute aerobic exercise: fMRI study of preadolescent children[J]. Front Psychol, 2016, 7: 1804.
[27]	DE BRUIJN A G M, VAN DER FELS I M J, RENKEN R J, et al. Differential effects of long-term aerobic versus cognitively-engaging physical activity on children's visuospatial working memory related brain activation: A cluster RCT[J]. Brain Cogn, 2021, 155: 105812.
[28]	CHEN A G, DONG X X, ZHU L N, et al. Effects of exercise intervention on executive control in deaf children: a multimodal magnetic resonance imaging research[J]. Journal of Sports and Science, 2018, 39(4): 52-59.
	陈爱国, 董晓晓, 朱丽娜, 等. 运动干预改善聋哑儿童执行控制的多模态磁共振研究[J]. 体育与科学, 2018, 39(4): 52-59.
[29]	熊轩. 运动干预改善聋哑儿童执行功能的脑网络机制研究[D]. 扬州: 扬州大学, 2019.
[30]	ZHU L, XIONG X, DONG X, et al. Working memory network plasticity after exercise intervention detected by task and resting-state functional MRI[J]. J Sports Sci, 2021, 39(14): 1621-1632.
[31]	TIAN M L, ZHOU C L. Study on the effects of grasp-related movement on children language processing in an overt verbal fluency task. Chin J Sports Med, 2012, 31(6): 526-532.
	田旻露, 周成林. 抓握运动对儿童言语流畅影响的脑功能成像研究[J]. 中国运动医学杂志, 2012, 31(6): 526-532.
[32]	MEIJER A, KONIGS M, POUWELS P J W, et al. Effects of aerobic versus cognitively demanding exercise interventions on brain structure and function in healthy children-Results from a cluster randomized controlled trial[J]. Psychophysiology, 2022, 59(8): e14034.
[33]	ORTEGA F B, MORA-GONZALEZ J, CADENAS-SANCHEZ C, et al. Effects of an exercise program on brain health outcomes for children with overweight or obesity: the activebrains randomized clinical trial[J]. JAMA Netw Open, 2022, 5(8): e2227893.
[34]	LI R, CHANG X, ZHANG J, et al. Progress of magnetic resonance spectroscopy in the study of the effects of smoking on the brain[J]. Chinese J Magn Reson, 2023, 40(4): 471-480.
	李任, 常晓, 张捷, 等. 磁共振波谱技术在吸烟对大脑影响的研究进展[J]. 波谱学杂志, 2023, 40(4): 471-480. doi: 10.11938/cjmr20233052
[35]	YI P, CAO L, HUANG Z, et al. Development of gradient coil and ¹H/¹³C dual-resonance RF coil for a small-bore 5 T MRI System[J]. Chinese J Magn Reson, 2024, 41(3): 245-256.
	易鹏, 曹丽, 黄臻, 等. 用于小口径5 T磁共振成像系统的梯度线圈和¹H/¹³C双共振射频线圈研制[J]. 波谱学杂志, 2024, 41(3): 245-256. doi: 10.11938/cjmr20243100
[36]	ROBERTS L D, BOSTRÖM P, O'SULLIVAN J F, et al. β-Aminoisobutyric acid induces browning of white fat and hepatic β-oxidation and is inversely correlated with cardiometabolic risk factors[J]. Cell Metab, 2014, 19(1): 96-108. doi: 10.1016/j.cmet.2013.12.003 pmid: 24411942
[37]	GUO Y H, CHEN P. The positive effects of the comprehensive intervention of aerobic exercise on the cognitive function of obese children: exploration of 1H-MRS and Event-Related Potential Studies[J]. China Sport Science and Technology, 2015, 51(4): 79-85.
	郭艳花, 陈平. 有氧运动综合干预对肥胖儿童认知功能的积极影响: ¹H-MRS及事件相关电位研究的探索[J]. 中国体育科技, 2015, 51(4): 79-85.
[38]	SUN J, CHEN P, CHEN Y. Proton magnetic resonance spectroscopy changes before and after aerobic exercise comprehensive intervention of cerebral metabolism in obses children[J]. Sport Science and Technology, 2015, 36(2): 63-66.
	孙剑, 陈平, 陈烨. 有氧运动综合干预前后肥胖儿童脑代谢的质子磁共振波谱变化研究[J]. 体育科技, 2015, 36(2): 63-66.
[39]	SONG Y, FAN B, WANG C, et al. Meta-analysis of the effects of physical activity on executive function in children and adolescents with attention deficit hyperactivity disorder[J]. PLoS One, 2023, 18(8): e0289732.
[40]	IBRAHIM K, SOORYA L V, HALPERN D B, et al. Social cognitive skills groups increase medial prefrontal cortex activity in children with autism spectrum disorder[J]. Autism Res, 2021, 14(12): 2495-2511. doi: 10.1002/aur.2603 pmid: 34486810
[41]	SAMSIR M S, ZAKARIA R, RAZAL S A, et al. Six months guided exercise therapy improves motor abilities and white matter connectivity in children with cerebral palsy[J]. Malays J Med Sci, 2020, 27(5): 90-100.
