A Method for Improving the Measurement Accuracy of Nuclear Magnetic Resonance Fast Relaxation Signal

doi:10.11938/cjmr20233082

Abstract

Abstract:

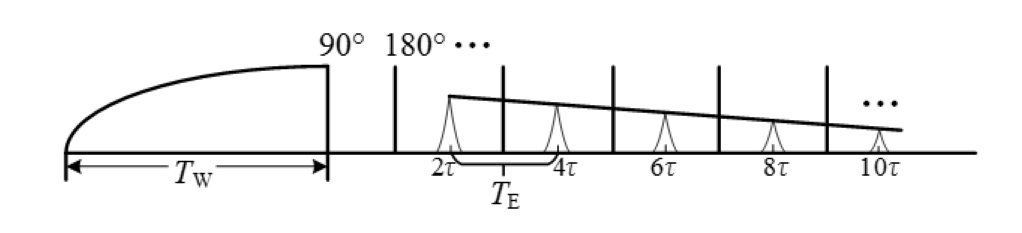

Nuclear magnetic resonance (NMR) technology can directly detect hydrogen signals in hydrogen-containing fluids, such as water and hydrocarbon. It can provide quantitative characterization of the fluid content and surrounding environment, thus finding extensive application in oil and gas exploration field. However, when measured samples containing ultra-fast relaxation components, such as shale oil and gas, the reliability of measurement results tends to be very low because only a small number of front-end signals in Carr-Purcell-Meiboom-Gill (CPMG) pulse sequence can be obtained for the fast relaxation components. To address this problem, a multiple micro echo interval measurement (MCTEM) method was proposed in this research. In the measurement stage, the proposed method acquired more NMR front-end signals. In the inversion stage, multiple echo data were adopted for the joint inversion. It contributed to forming an accurate fast relaxation T₂ spectrum. MCTEM method was validated through numerical simulations and rock physics experiments. It was concluded from the results that MCTEM method could improve the problem of peak disappearance for fast relaxation components in T₂ spectrum caused by long echo interval. MCTEM method could enhance the measurement accuracy of fast relaxation signals effectively.

Key words: NMR, measurement accuracy, multiple micro echo interval measurement, fast relaxation components

CLC Number:

TE112.6

MA Yingying, ZHANG Gong, LIAO Zhongshu. A Method for Improving the Measurement Accuracy of Nuclear Magnetic Resonance Fast Relaxation Signal[J]. Chinese Journal of Magnetic Resonance, 2024, 41(2): 162-172.

Figures/Tables 14

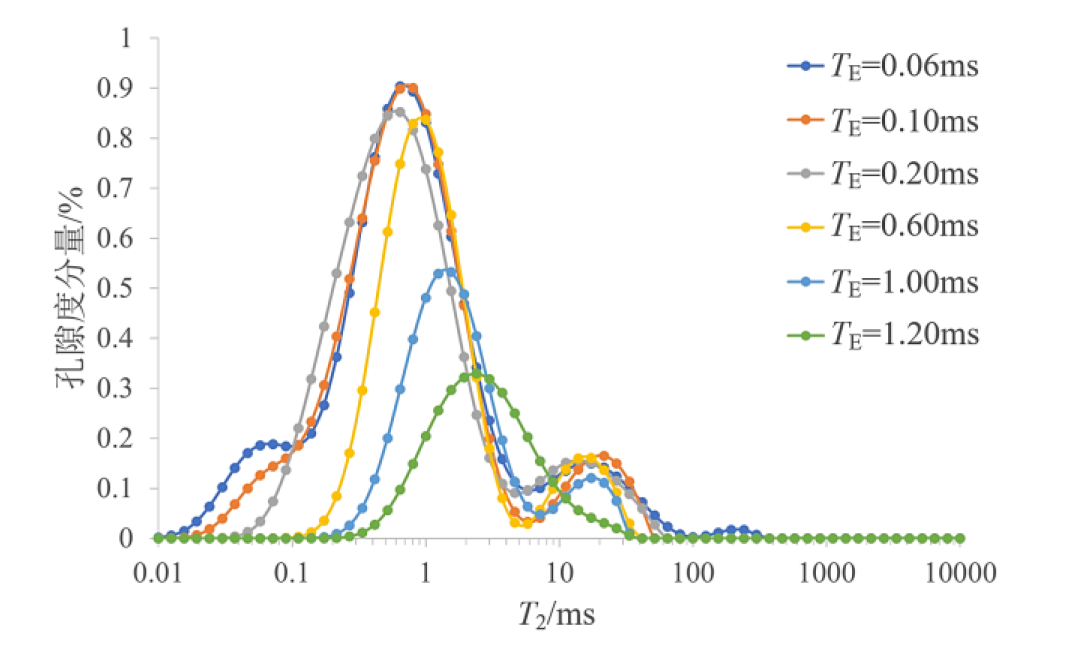

Fig. 1

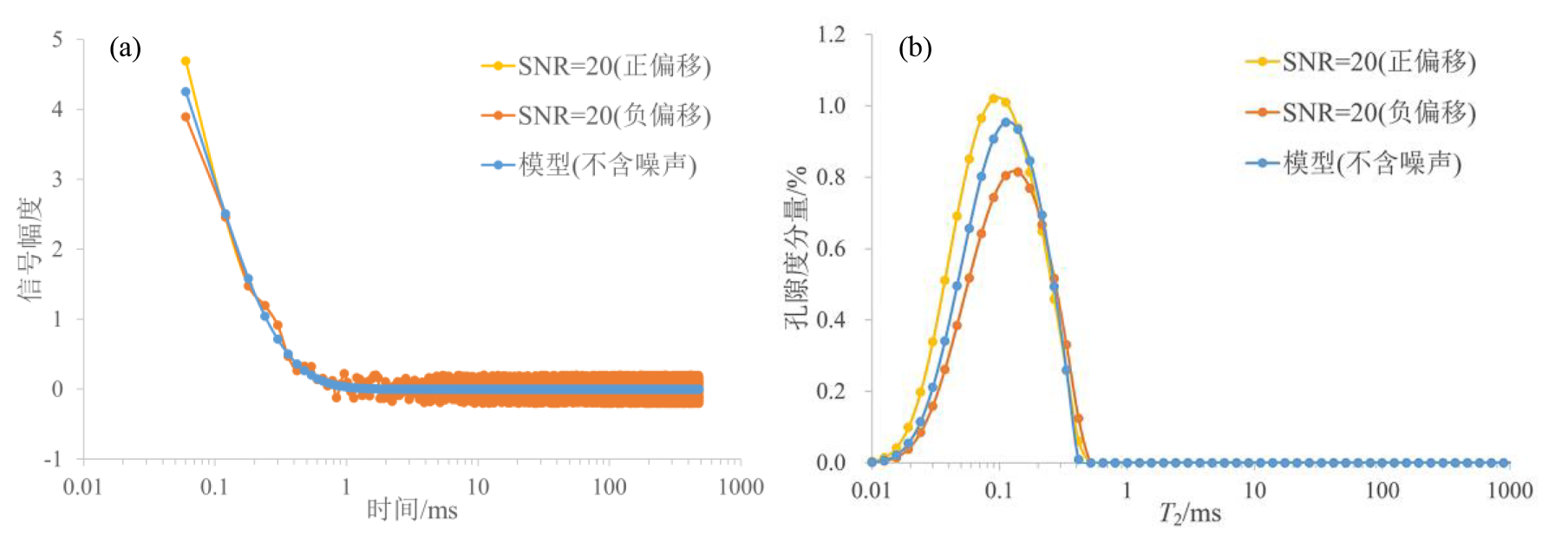

Fig. 2

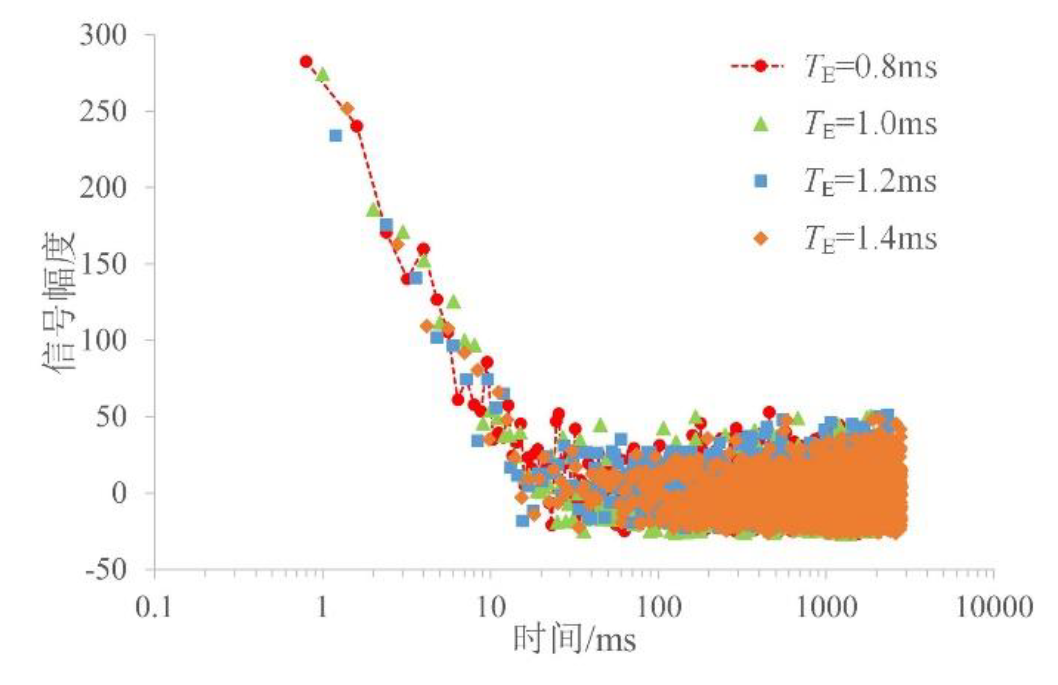

Fig. 3

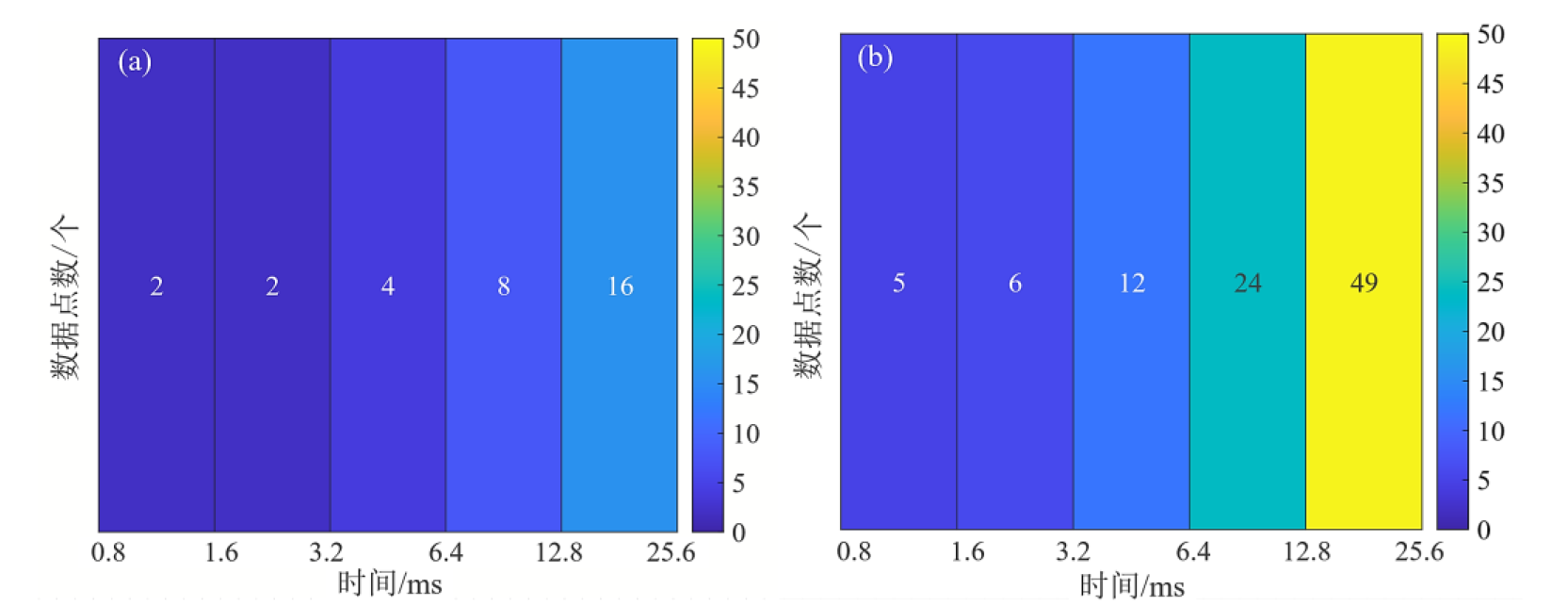

Fig. 4

Fig. 5

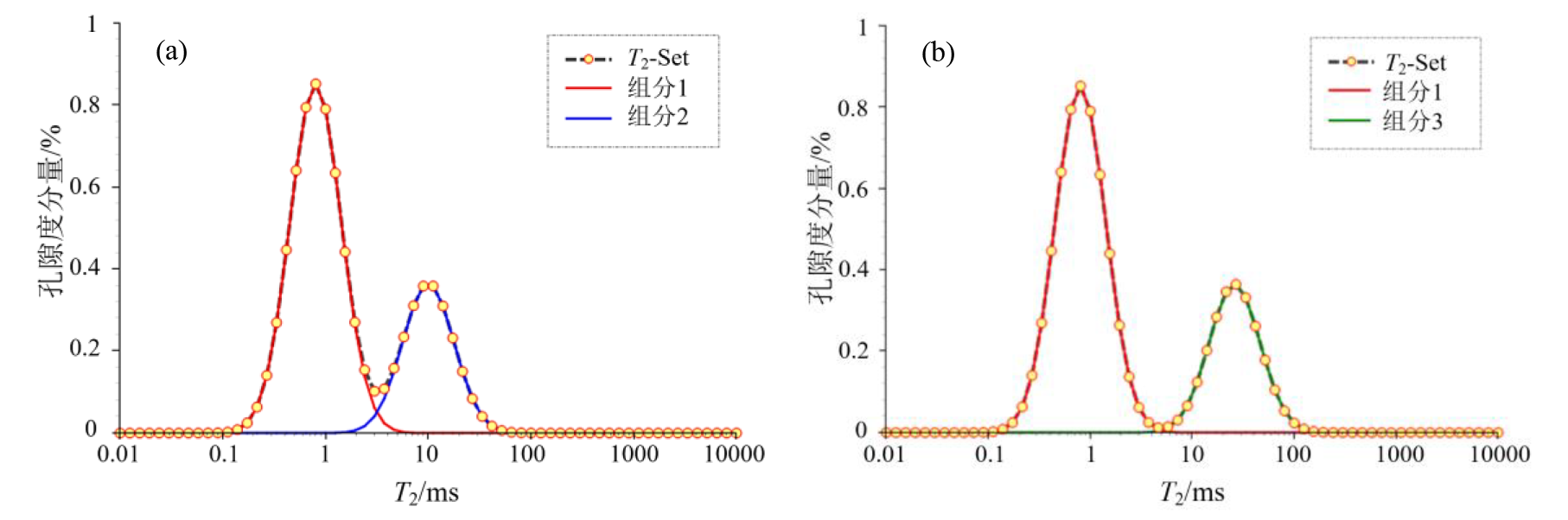

Fig. 6

Fig. 7

Fig. 8

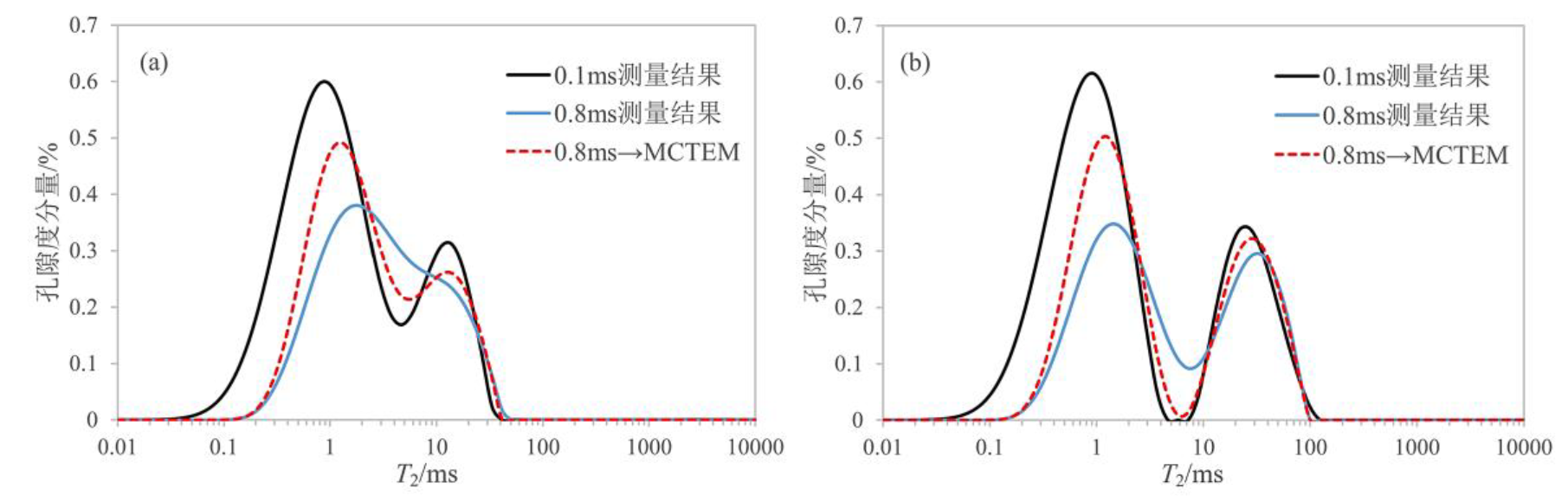

Fig. 9

Table 1

Table 2

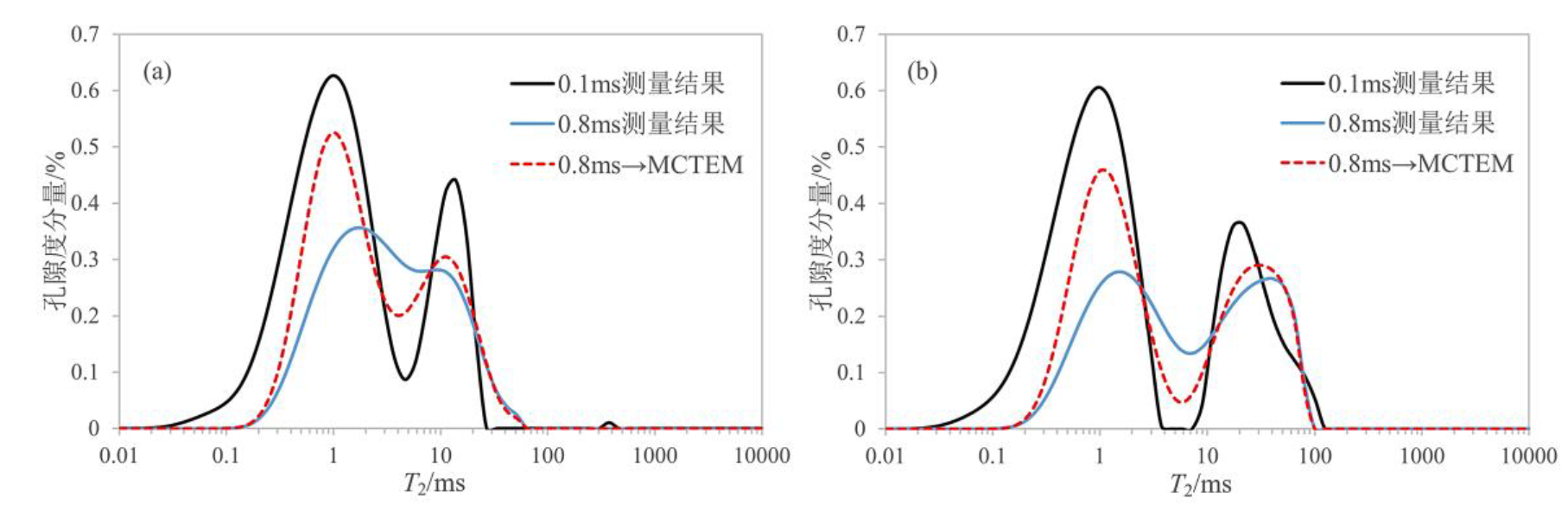

Fig. 10

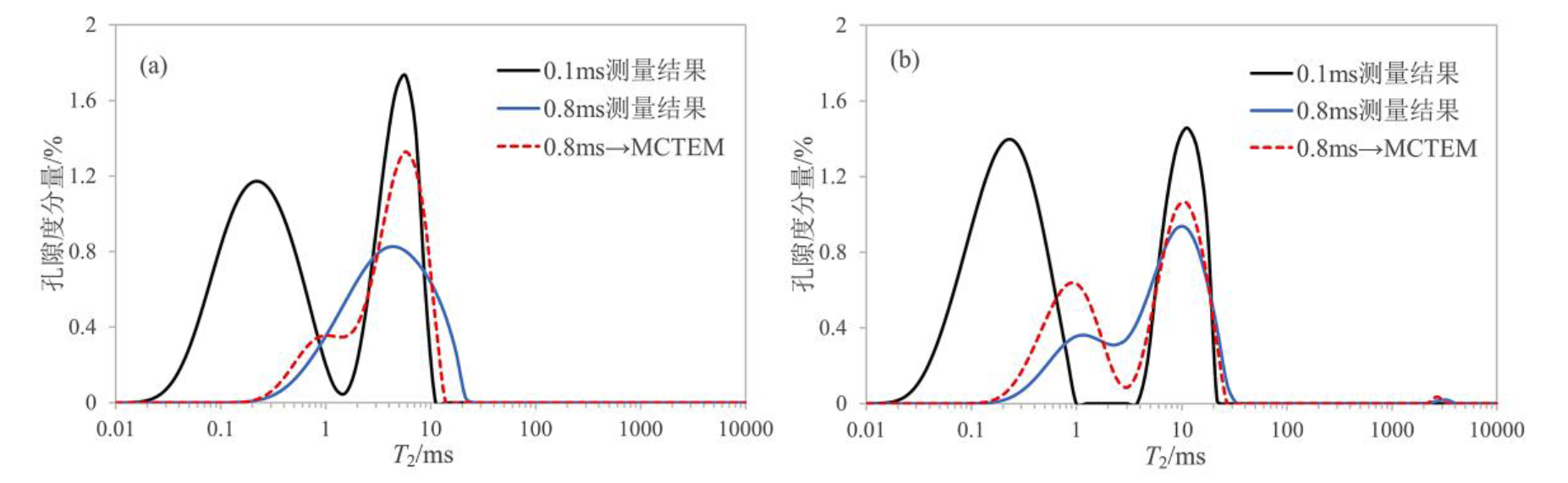

Fig. 11

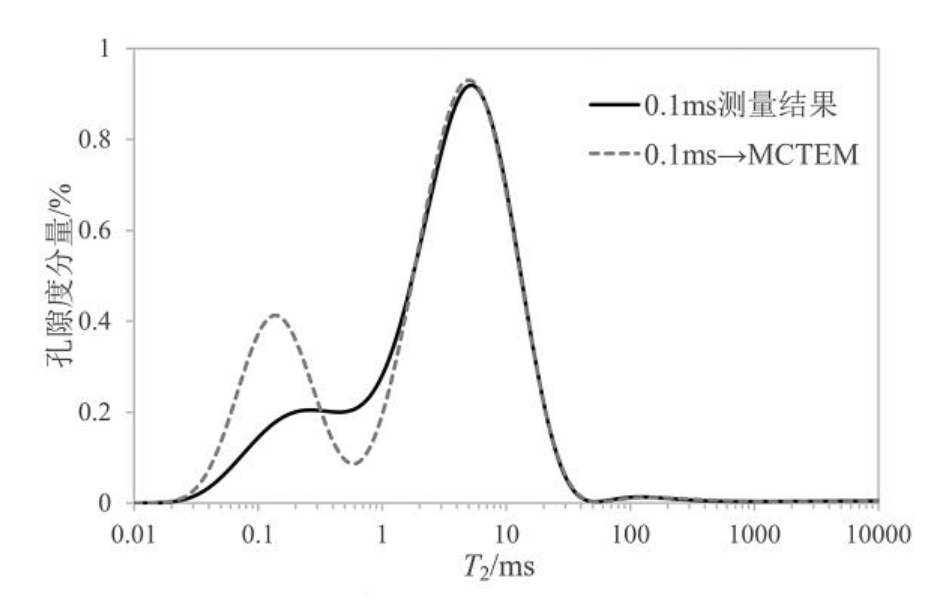

Fig. 12

References 17

[1]	WANG Z Z, LI X, WEI Y X, et al. NMR technologies for evaluating oil & gas shale: a review[J]. Chinese J Magn Reson, 2015, 32(4): 688-698.
	王志战, 李新, 魏杨旭, 等. 页岩油气层核磁共振评价技术综述[J]. 波谱学杂志, 2015, 32(4): 688-698. doi: 10.11938/cjmr20150414
[2]	SUN Z L, LI Z M, SHEN B J, et al. NMR technology in reservoir evaluation for shale oil and gas[J]. Petroleum Geology & Experiment, 2022, 44(5): 930-940.
	孙中良, 李志明, 申宝剑, 等. 核磁共振技术在页岩油气储层评价中的应用[J]. 石油实验地质, 2022, 44(5): 930-940.
[3]	SUN Y. Review of the application of nuclear magnetic resonance in the evaluation of shale reservoir parameters[J]. Progress in Geophysics, 2023, 38(1): 254-270. (in Chinese)
	孙颖. 核磁共振在页岩储层参数评价中的应用综述[J]. 地球物理学进展, 2023, 38(1): 254-270.
[4]	XIE R H, XIAO L Z, WANG Z D, et al. The influence factors of NMR logging porosity in complex fluid reservoir[J]. Sci China Ser D, 2008(S1): 191-196.
	谢然红, 肖立志, 王忠东, 等. 复杂流体储层核磁共振测井孔隙度影响因素[J]. 中国科学(D辑: 地球科学), 2008(S1): 191-196.
[5]	LI X, LIU P, LUO Y Y, et al. Analysis of influencing factors on porosity measurement of shale gas reservoir core[J]. Progress in Geophysics, 2015, 30(5): 2181-2187. (in Chinese)
	李新, 刘鹏, 罗燕颖, 等. 页岩气储层岩心孔隙度测量影响因素分析[J]. 地球物理学进展, 2015, 30(5): 2181-2187.
[6]	NING C X, JIANG Z X, SU S Y, et al. Method for calculating pore radius distribution in shale reservoirs from NMR T2 spectra[J]. Sci Tech Eng, 2016, 16(27): 14-19. (in Chinese)
	宁传祥, 姜振学, 苏思远, 等. 泥页岩核磁共振T2谱换算孔隙半径方法[J]. 科学技术与工程, 2016, 16(27): 14-19.
[7]	LIU J D, ZOU H X, LIU J T, et al. Optimization of acquisition parameters for rock nuclear magnetic resonance analyzer[J]. Petroleum Geology and Engineering, 2019, 33(5): 50-53.
	刘景东, 邹海霞, 刘俊田, 等. 岩石核磁共振分析仪采集参数设置优化[J]. 石油地质与工程, 2019, 33(5): 50-53.
[8]	GAO M Z, ZOU C C, PENG C, et al. Study on selection method of core nuclear magnetic resonance experiment parameters for shale reservoir[J]. Chinese Journal of Engineering Geophysics, 2016, 13(3): 263-270.
	高明哲, 邹长春, 彭诚, 等. 页岩储层岩心核磁共振实验参数选取方法研究[J]. 工程地球物理学报, 2016, 13(3): 263-270.
[9]	ZHANG G, HE Z B, CAO W Q, et al. Effects of echo time on NMR apparent porosity and correction methods[J]. Chinese J Magn Reson, 2020, 37(2): 172-181.
	张宫, 何宗斌, 曹文倩, 等. 回波间隔对核磁共振表观孔隙度的影响及矫正方法[J]. 波谱学杂志, 2020, 37(2): 172-181. doi: 10.11938/cjmr20192771
[10]	ZHANG R, WANG W, GAO Y, et al. Sensitivity analysis of T2-T1 2D NMR measurement parameters in shale oil reservoirs[J]. Chinese J Magn Reson, 2023, 40(2): 122-135.
	张融, 王伟, 高怡, 等. 页岩油储层T2-T1二维核磁共振测量参数敏感性分析[J]. 波谱学杂志, 2023, 40(2): 122-135. doi: 10.11938/cjmr20223025
[11]	TESTAMANTI M N, REZAEE R. Considerations for the acquisition and inversion of NMR T2 data in shales[J]. J Petrol Sci Eng, 2019, 174: 177-188.
[12]	COATES G R, XIAO L Z, PRAMMER M G. NMR logging principles and applications[M]. Houston: Gulf Publishing Company, USA, 2000.
[13]	邓克俊, 谢然红. 核磁共振测井理论及应用[M]. 山东: 中国石油大学出版社, 2010.
[14]	WANG W M, LI P, YE C H. A multi-exponent inversion algorithm for NMR signal[J]. Sci China Ser A, 2001, 31(8): 730-736.
	王为民, 李培, 叶朝辉. 核磁共振弛豫信号的多指数反演[J]. 中国科学(A辑), 2001, 31(8): 730-736.
[15]	WANG Z L, ZHANG R, ZHANG N, et al. A high-precision processing method of two-dimensional NMR logging data based on component compensation[J]. Chinese J Magn Reson, 2022, 39(2): 174-183.
	王振林, 张融, 张妮, 等. 一种基于组分补偿的二维核磁共振测井数据高精度处理方法[J]. 波谱学杂志, 2022, 39(2): 174-183. doi: 10.11938/cjmr20212964
[16]	XIE R H, XIAO L Z, LIU J J, et al. A method for multiple echo trains jointing inversion of NMR relaxation measurements[J]. Chinese J Geophys, 2009, 52(11): 2913-2919. (in Chinese)
	谢然红, 肖立志, 刘家军, 等. 核磁共振多回波串联合反演方法[J]. 地球物理学报, 2009, 52(11): 2913-2919.
[17]	PENG C, HE Z B, ZHANG G. Development of NMR T2 relaxation simulation software and its application in core NMR experiment[J]. Computer Application and Software, 2019, 36(3): 282-286+300.
	彭川, 何宗斌, 张宫. 核磁共振T2弛豫仿真软件研发及在岩心核磁实验中的应用[J]. 计算机应用与软件, 2019, 36(3): 282-286+300.

模型名称		模型一				模型二
测量方法		理论标准	T_E=0.1 ms	T_E=0.8 ms	MCTEM	理论标准	T_E=0.1 ms	T_E=0.8 ms	MCTEM
高信噪比（100）	孔隙度/%	8.00	8.21	5.64	6.26	8.00	8.20	5.59	6.28
高信噪比（100）	绝对误差/%	0.00	0.21	2.36	1.74	0.00	0.20	2.41	1.72
低信噪比（10）	孔隙度/%	8.00	8.21	5.65	6.50	8.00	8.21	5.25	6.11
低信噪比（10）	绝对误差/%	0.00	0.21	2.35	1.50	0.00	0.21	2.75	1.89

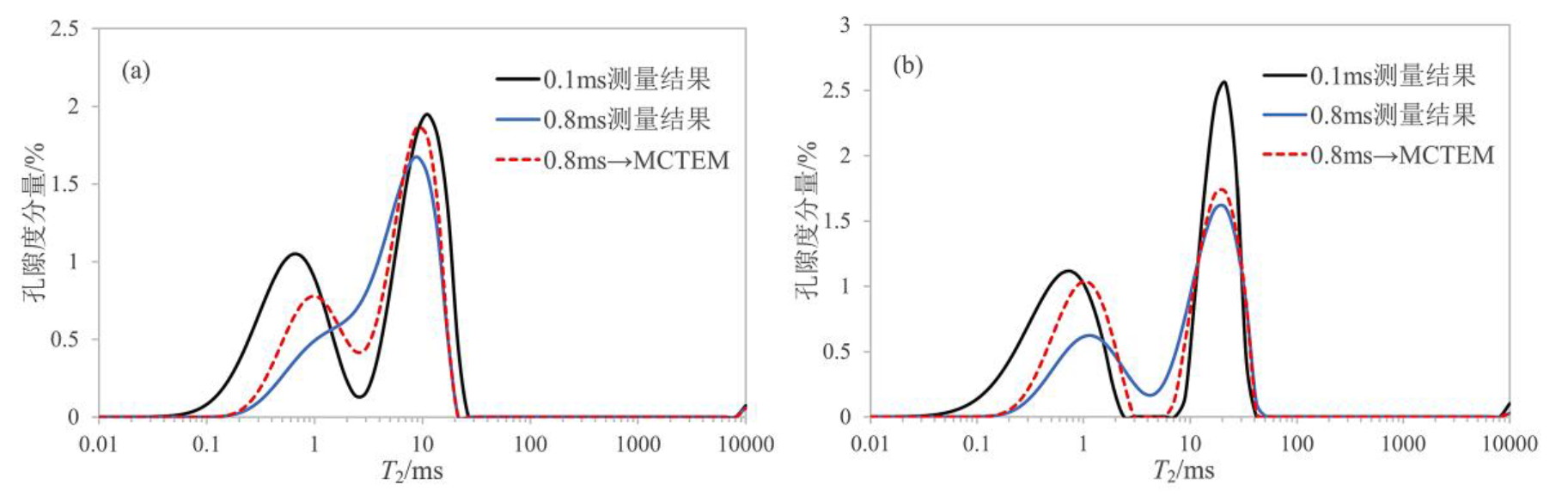

样品编号	体积/mL	模型T₂/ms	采集参数
样品编号	体积/mL	模型T₂/ms	等待时间/ms	扫描次数	回波间隔/ms	回波个数
1号	1.0	0.7、11.0	4000	1	0.1、0.8、0.9、1.0、1.1、1.2、1.3、1.4、1.5	2000
2号	1.0	0.7、21.0	4000	1	0.1、0.8、0.9、1.0、1.1、1.2、1.3、1.4、1.5	2000
