雌激素、肿瘤标志物联合DCE-MRI在宫颈癌诊断及临床分期中的应用

doi:10.11938/cjmr20243133

摘要/Abstract

摘要：

准确可靠的宫颈癌诊断是临床治疗和预后评估的关键. 针对现有的血清雌激素、肿瘤标志物单独评估其宫旁浸润、淋巴结转移等病变特征敏感性较低，本文提出一种联合磁共振多期动态增强成像（DCE-MRI）的诊断方法，首先对患者进行血清雌二醇（E2）、促卵泡生成素（FSH）、促黄体生成素（LH）、糖链抗原125（CA125）、糖链抗原19-9（CA19-9）及DCE-MRI检测，分析宫颈癌分期与血清E2、FSH、LH、CA125、CA19-9水平相关性；然后，以宫颈活检结果为金标准，分析DCE-MRI对宫颈癌深肌层浸润、淋巴结转移的诊断准确率；最后，以受试者工作特征曲线（ROC）分析血清E2、FSH、LH、CA125、CA19-9水平、DCE-MRI诊断及联合诊断方法对宫颈癌的诊断价值. 实验结果表明，联合诊断的曲线下面积（AUC）为0.908，这表明联合诊断方法可较好区分宫颈病变的良恶性，而基于DCE-MRI参数K^trans、K^ep也进一步丰富了特征信息，从而提高病灶的检出精度，为宫颈癌良恶性鉴别及其临床分期诊断提供了新方法.

关键词: 雌激素, 肿瘤标志物, 磁共振多期动态增强成像, 宫颈癌, 联合诊断

Abstract:

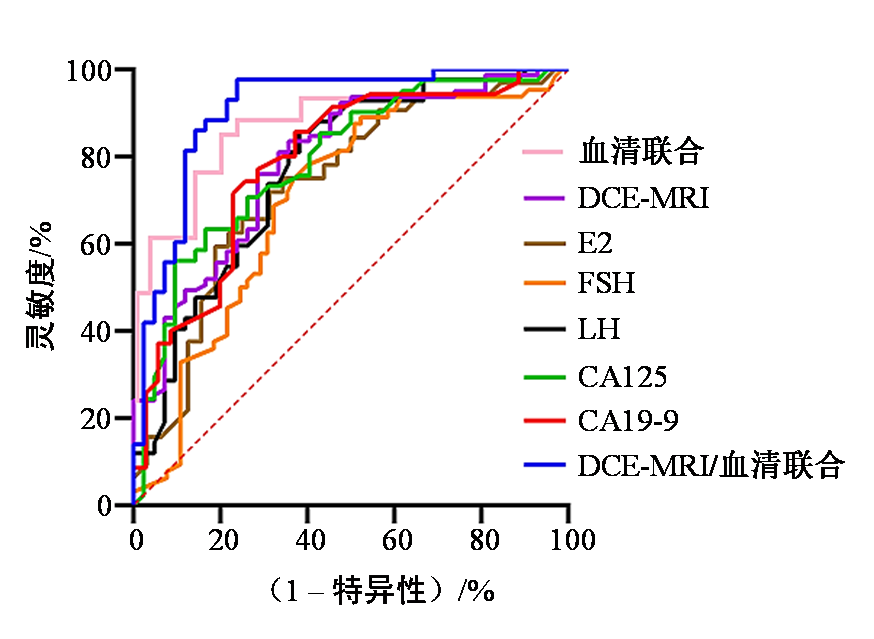

Accurate and reliable diagnosis of cervical cancer is crucial for effective clinical treatment and prognosis evaluation. Given the low sensitivity of existing serum estrogen and tumor markers in assessing lesion features like parauterine invasion and lymph node metastasis, this study proposes a diagnostic method integrating multi-phase dynamic enhanced magnetic resonance imaging (DCE-MRI). Firstly, serum estradiol (E2), follicle-stimulating hormone (FSH), luteinizing hormone (LH), glycochain antigen 125 (CA125), glycochain antigen 19-9 (CA19-9) and DCE-MRI were detected to analyze the correlation between cervical cancer stage and serum levels of E2, FSH, LH, CA125 and CA19-9. Then, cervical biopsy results were used as the gold standard to analyze the diagnostic accuracy of DCE-MRI for cervical deep muscle invasion and lymph node metastasis. Finally, the serum levels of E2, FSH, LH, CA125, CA19-9, DCE-MRI diagnosis and combined diagnosis of cervical cancer were evaluated based on the receiver operating characteristic (ROC) curve. The experimental results showed that the AUC of combined diagnosis was 0.908, indicating that the combined diagnosis method effectively distinguished benign and malignant cervical lesions. Furthermore, DCE-MRI parameters K^trans and K^ep enriched the feature information, thereby improving the detection accuracy of lesions. This provides a novel approach for differentiating between benign and malignant cervical cancer and for determining its clinical stage.

Key words: estrogen, tumor markers, multi-phase dynamic enhanced magnetic resonance imaging, cervical cancer, combined diagnosis

中图分类号:

O482.53

左冰玉, 石丽莉, 宋佳, 赵阳, 李倩. 雌激素、肿瘤标志物联合DCE-MRI在宫颈癌诊断及临床分期中的应用[J]. 波谱学杂志, 2025, 42(2): 164-173.

ZUO Bingyu, SHI Lili, SONG Jia, ZHAO Yang, LI Qian. Application of Estrogen and Tumor Markers Combined with DCE-MRI in Diagnosis and Clinical Staging of Cervical Cancer[J]. Chinese Journal of Magnetic Resonance, 2025, 42(2): 164-173.

图/表 10

表1

表2

图1

表3

图2

表4

表5

图3

表6

图4

参考文献 26

[1]	MILLER E A, PINSKY P F. Cervical cancer screening and predictors of screening by diabetes status[J]. Cancer Causes Control, 2022, 33(10): 1305-1312.
[2]	SHEN S, ZHANG S, LIU P, et al. Potential role of microRNAs in the treatment and diagnosis of cervical cancer[J]. Cancer Genet, 2020, 248-249: 25-30.
[3]	LIN S, GAO K, GU S, et al. Worldwide trends in cervical cancer incidence and mortality, with predictions for the next 15 years[J]. Cancer, 2021, 127(21): 4030-4039. doi: 10.1002/cncr.33795 pmid: 34368955
[4]	YANG X, WANG J, LI WP, et al. Desmocollin 3 mediates follicle stimulating hormone-induced ovarian epithelial cancer cell proliferation by activating the EGFR/Akt signaling pathway[J]. Int J Clin Exp Pathol, 2015, 8(6): 6716-23.
[5]	HUANG Z Y, SONG X Y, LI Z Y. Study on the relationship between serum 25-hydroxy-vitamin D and estradiol levels and the occurrence of cervical cancer[J]. Chinese Journal of Health Inspection, 2015, 25(11): 1867-1868.
	黄朝阳, 宋秀宇, 李志勇. 血清25-羟-维生素D及雌二醇水平与宫颈癌发生的关系研究[J]. 中国卫生检验杂志, 2015, 25(11): 1867-1868.
[6]	ZHANG L, ZHANG H, HUANG Y, et al. Expression of immune cell markers and tumor markers in patients with cervical cancer[J]. Int J Gynecol Cancer, 2020, 30(7): 969-974. doi: 10.1136/ijgc-2020-001254 pmid: 32518078
[7]	QIU Y, NIE S D, WEI L. Segmentation of breast tumors based on fully convolutional network and dynamic contrast enhanced magnetic resonance image[J]. Chinese J Magn Reson, 2022, 39(2): 196-207.
	邱玥, 聂生东, 魏珑. 基于全卷积网络的乳腺肿瘤动态增强磁共振图像分割[J]. 波谱学杂志, 2022, 39(2): 196-207. doi: 10.11938/cjmr20212921
[8]	ZHENG C, QING S, WANG J, et al. Diagnosis of cervical squamous cell carcinoma and cervical adenocarcinoma based on Raman spectroscopy and support vector machine[J]. Photodiagnosis Photodyn Ther, 2019, 27: 156-161. doi: S1572-1000(19)30062-6 pmid: 31136828
[9]	SHU W Q. Relationship between serum SCC-Ag and tissue ATF3 and clinical stage and tumor diameter in patients with cervical squamous cell carcinoma[J]. Chinese Journal of Modern Medicine, 2016, 18(10): 5-7.
	舒维清. 子宫颈鳞癌患者血清SCC-Ag及组织ATF3与临床分期及肿瘤直径的关系[J]. 中国现代医药杂志, 2016, 18(10): 5-7.
[10]	崔蕾. 浆液性卵巢癌患者血清中FSH、LH、PRL水平、临床意义及其联合检测价值[D]. 天津: 天津医科大学, 2017.
[11]	LIN L J, LV F B, XIE S M. Application value of dynamic enhanced magnetic resonance imaging combined with diffusion-weighted magnetic resonance imaging in staging diagnosis of cervical cancer[J]. China Maternal and Child Health Care, 2021, 36(21): 5099-5101.
	林丽君, 吕芳滨, 谢森淼. 动态增强磁共振成像联合磁共振弥散加权成像在宫颈癌患者分期诊断中的应用价值[J]. 中国妇幼保健, 2021, 36(21): 5099-5101.
[12]	NG J, CHEUNG B, LEE D, et al. Detection rates and factors affecting thereof in endometrial hyperplasia, endometrial carcinoma, and cervical glandular lesions on cervical smear[J]. Cancer Med, 2023, 12(17): 17581-17591.
[13]	LEE A, TYRER J, DOHERTY J, et al. Evaluating the ovarian cancer gonadotropin hypothesis: a candidate gene study[J]. Gynecol Oncol, 2015, 136(3): 542-548. doi: 10.1016/j.ygyno.2014.12.017 pmid: 25528498
[14]	CHEN Q H, LI Y J, WANG X M, et al. Analysis of diagnostic accuracy of pancreatic cancer by enhanced magnetic resonance imaging combined with serum carbohydrate antigen 19-9, carbohydrate antigen 125 and carcinoembryonic antigen detection[J]. Chinese Journal of Health Inspection, 2020, 30(13): 1616-1619.
	陈庆华, 李彦君, 王向明, 等. 增强磁共振成像联合血清糖类抗原19-9、糖类抗原125、癌胚抗原检测对胰腺癌诊断准确性的分析[J]. 中国卫生检验杂志, 2020, 30(13): 1616-1619.
[15]	YANG Y F, QI Z X, NIE S D. Identification of benign and malignant breast lesions based on multimodal MRI and deep learning[J]. Chinese J Magn Reson, 2022, 39(4): 401-412.
	杨一风, 祁章璇, 聂生东. 基于多模态MRI与深度学习的乳腺病变良恶性鉴别[J]. 波谱学杂志, 2022, 39(4): 401-412. doi: 10.11938/cjmr20222969
[16]	LOMBARDI A, VICENTE C, PORTO C. Estrogen receptors promote migration, invasion and colony formation of the androgen-independent prostate cancer cells PC-3 through β-catenin pathway[J]. Front Endocrinol (Lausanne), 2020, 11: 184.
[17]	DOORBAR J, EGAWA N, GRIFFIN H, et al. Human papillomavirus molecular biology and disease association[J]. Rev Med Virol, 2015, 25: 2-23.
[18]	LI Y J, LIU N, LEI T, et al. Analysis of relevant test indicators in differential diagnosis of prostate cancer[J]. Marker Immunoassay and Clinical Analysis, 2021, 28(10): 1750-1753.
	李亦君, 刘娜, 雷婷, 等. 前列腺癌鉴别诊断的相关检验指标分析[J]. 标记免疫分析与临床, 2021, 28(10): 1750-1753.
[19]	CHEN L J, ZHAI M J. Correlation between Galectin-3, CA19-9 levels and clinicopathological characteristics of cervical cancer[J]. China Maternal and Child Health Care, 2019, 34(22): 5298-5301.
	陈立江, 翟梅娟. 宫颈癌组织中Galectin-3、CA19-9水平与临床病理特征的相关性[J]. 中国妇幼保健, 2019, 34(22): 5298-5301.
[20]	LI X F. Clinical value of combined detection of serum tumor marker CA125 and CEA in diagnosis of cervical cancer[J]. Imaging Research and Medical Application, 2017, 1(11): 233-234.
	李晓帆. 血清肿瘤标志物CA125、CEA联合检测在宫颈癌诊断中的临床价值[J]. 影像研究与医学应用, 2017, 1(11): 233-234.
[21]	HUO L, HU X X, XIAO Q, et al. Automatic segmentation of breast and gland in breast DCE-MR images based on nnU-Net[J]. Chinese J Magn Reson, 2021, 38(3): 367-380.
	霍璐, 胡晓欣, 肖勤, 等. 基于nnU-Net的乳腺DCE-MR图像中乳房和腺体自动分割[J]. 波谱学杂志, 2021, 38(3): 367-380. doi: 10.11938/cjmr20212883
[22]	LI D, HUO L, WAN M Y, et al. Application of image omics based on novel support vector machine to liver nodule classification[J]. Chinese J Magn Reson, 2022, 39(3): 278-290.
	李笛, 霍雷, 万梦云, 等. 基于新型支持向量机的影像组学在肝脏结节分类中的应用[J]. 波谱学杂志, 2022, 39(3): 278-290. doi: 10.11938/cjmr20212916
[23]	WEI R F, CHEN X P. Significance of MRI combined with serum SCCA and CA125 in the diagnosis of cervical cancer[J]. Chinese Journal of CT and MRI, 2020, 18(7): 97-99.
	魏荣富, 陈晓萍. MRI联合血清SCCA、CA125对宫颈癌的诊断意义[J]. 中国CT和MRI杂志, 2020, 18(7): 97-99
[24]	HUANG G, CUI Y, WANG P, et al. Multi-parametric magnetic resonance imaging-based radiomics analysis of cervical cancer for preoperative prediction of lymphovascular space invasion[J]. Front Oncol, 2022, 11: 663370.
[25]	LI J. The value of detection of FT_4, FT_3, E_2 and progesterone levels in the diagnosis of breast cancer[J]. Chinese Journal of Medical Sciences, 2023, 35(14): 117-119.
	李洁. FT_4、FT_3、E_2、孕酮水平检测在乳腺癌诊断中的价值[J]. 中国民康医学, 2023, 35(14): 117-119.
[26]	JIANG X D. The diagnostic value of MRI combined with tumor markers in ovarian cancer[J]. Chinese Journal of CT and MRI, 2023, 21(8): 129-131+145.
	蒋小冬. MRI联合肿瘤标志物对卵巢癌的诊断价值分析[J]. 中国CT和MRI杂志, 2023, 21(8): 129-131+145.

组别	样本数（n）	年龄/岁	BMI/(kg/m²)	文化水平/例，括号内为百分占比
组别	样本数（n）	年龄/岁	BMI/(kg/m²)	初中及以下	初中’高中	大学及以上
对照组	63	47.95±3.26	25.61±0.88	12（19.05%）	28（44.44%）	23（36.51%）
研究组	87	48.04±2.11	25.82±1.01	18（20.69%）	37（42.53%）	32（36.78%）
P		0.838	0.187	0.804	0.815	0.973

分组	样本数（n）	E2/(pmol/L)	FSH/(mIU/mL)	LH/(mIU/mL)	CA125/(U/mL)	CA19-9/(U/mL)
对照组	63	58.15±6.46	14.26±2.89	8.08±2.41	16.15±6.46	19.58±6.72
研究组	87	280.09±13.55	200.48±10.63	211.52±10.75	206.28±10.47	212.47±9.63
t		120.400	135.400	147.400	127.600	136.700
P		<0.001	<0.001	<0.001	<0.001	<0.001

分组	样本数（n）	E2/（pmol/L）	FSH/（mIU/mL）	LH/（mIU/mL）	CA125/（U/mL）	CA19-9/（U/mL）
I期宫颈癌	25	268.88±2.15	191.72±1.87	201.09±0.25	195.92±0.08	205.02±2.18
Ⅱ期宫颈癌	24	278.39±2.83^*	197.44±2.65^*	209.99±2.32^*	205.98±2.69^*	211.28±2.47^*
Ⅲ期宫颈癌	19	289.87±3.35^*#	207.49±3.61^*#	219.08±3.21^*#	212.99±3.34^*#	218.34±3.62^*#
Ⅳ期宫颈癌	19	287.16±5.94^*#	208.82±2.19^*#	219.56±0.16^*#	213.52±3.23^*#	217.91±4.19^*#
F		143.800	214.700	467.900	507.200	90.540
P		<0.001	<0.001	<0.001	<0.001	<0.001

分组	样本（n）	K^trans/(min^-1)	K^ep/(min^-1)	V^e
I期宫颈癌	25	0.13±0.04	0.35±0.13	0.23±0.05
Ⅱ期宫颈癌	24	0.19±0.08^*	0.46±0.26^*	0.25±0.04
Ⅲ期宫颈癌	19	0.25±0.11^*#	0.59±0.17^*#	0.24±0.06
Ⅳ期宫颈癌	19	0.31±0.15^*#▲	0.87±0.21^*#▲	0.26±0.07
F		13.330	26.780	1.210
P		<0.001	0.002	0.311

宫颈活检	深肌层浸润		总计	淋巴结转移		总计
宫颈活检	阳性	阴性	总计	阳性	阴性	总计
阳性	72（82.76%）	10（11.49%）	82（94.25%）	73（83.91%）	10（11.49%）	83（95.40%）
阴性	4（4.60%）	1（1.15%）	5（5.75%）	3（3.45%）	1（1.15%）	4（4.60%）
总计	76（87.36%）	11（12.64%）	87（100.00%）	76（87.36%）	11（12.64%）	87（100.00%）
